AISY (Audio Identification SYstem) is a selective vehicle detection system, aimed for buses and tramways. AISY offers a complete solution for cross light priority for public transport vehicles and railroad switch control for tramways.

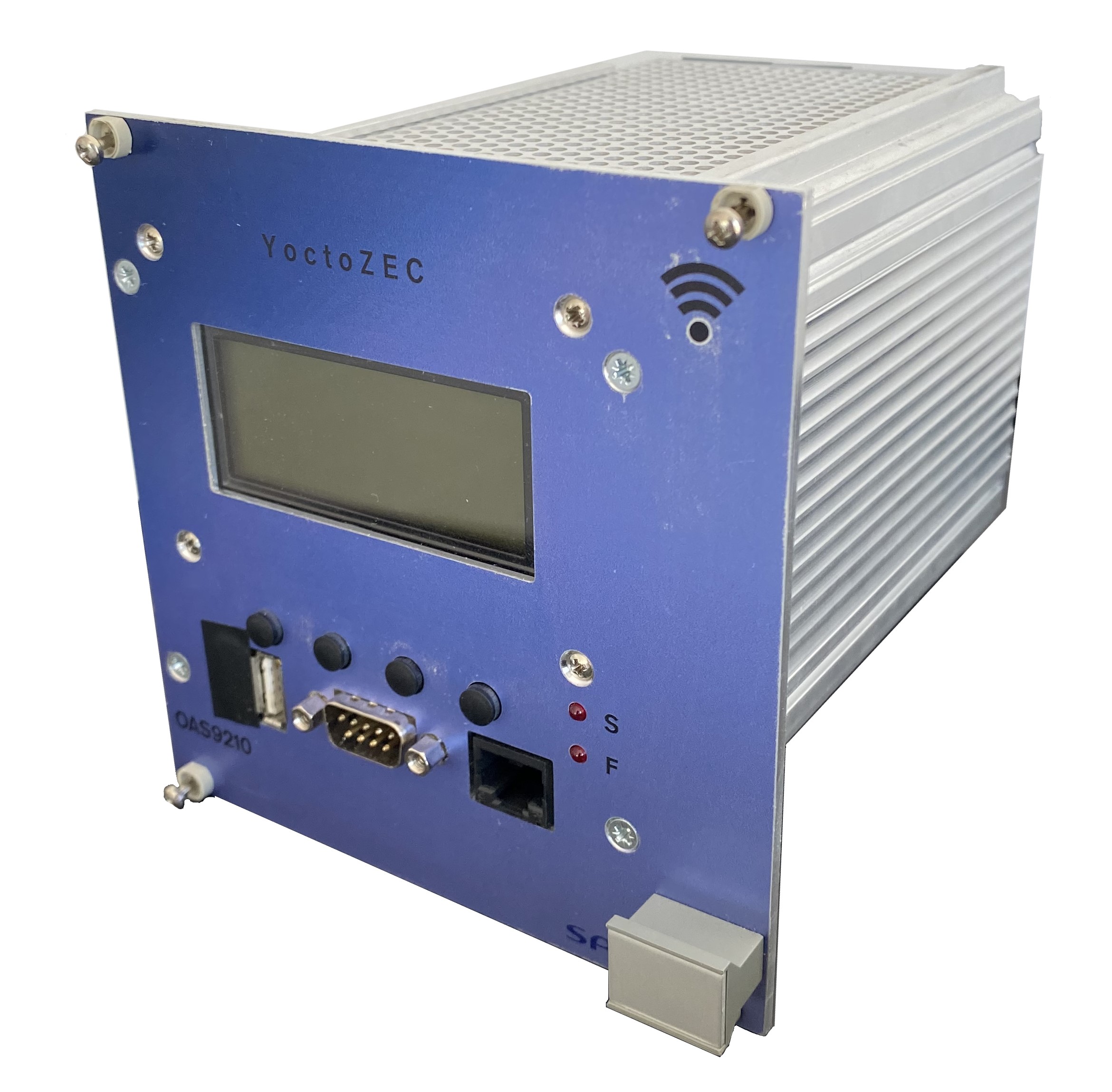

OAS9200 ("eYocto"): Processor card Compatible with OAS9210 ("YoctoZEC"), central processing unit  As intermediate solution before e-generation Rack mounted Configuration via USB, ethernet or via user interface Upgrading and logfile exports via USB and ethernet Serial communication via RS232 or USB-to-RS232 Compatible with all demodulator, relais and expansion cards until e-generation

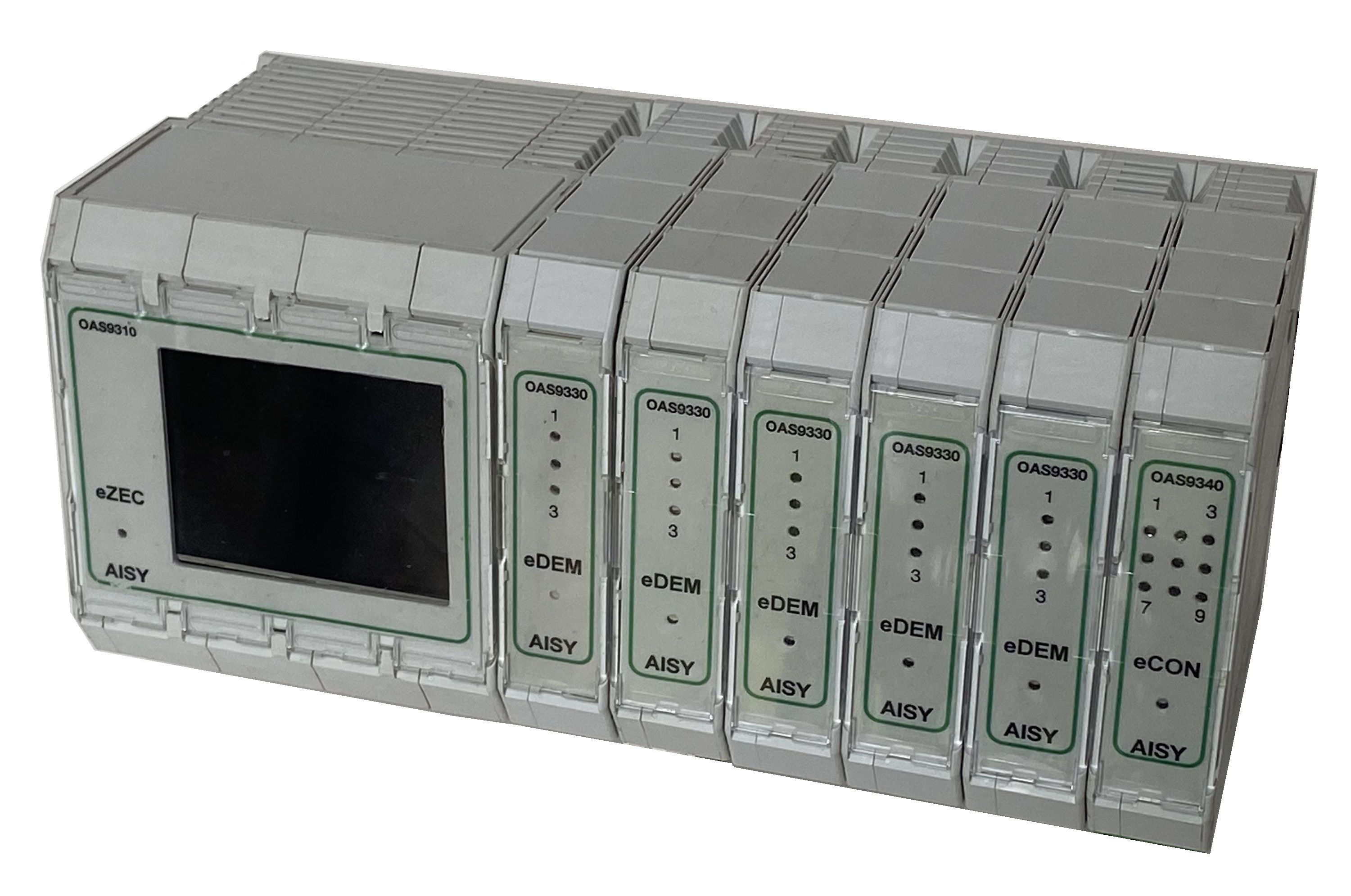

OAS9310 ("eZEC"): Central processing unit Successor of OAS9210 DIN-rail mounted Configuration via USB, ethernet or via user interface Upgrading and logfile exports via USB and ethernet Serial communication via RS232 or USB-to-RS232 Compatible with the newest demodulators OAS9330 (eDEM) and relais cards OAS9340 (eCON)
OAS9330 ("eDEM"): Demodulator Successor of OAS4930 DIN-rail mounted Configuration via eZEC
OAS9340 ("eCON"): Relay board Successor of OAS6030 DIN-rail mounted Configuration via eZEC
OAS4210 : Intelligent antenna stand-alone antenna with build-in intelligence & configuration parameters send data to the ground loops according to its configuration
OAS4220 : Drivers interface interface to a driver to set the correct configuration of the OAS4210 smart antenna

AISY (Audio Identification SYstem) is a selective vehicle detection system, aimed for buses and tramways. AISY offers a complete solution for cross light priority for public transport vehicles and railroad switch control for tramways.

OAS4210: Intelligent antenna  (>25 pieces)
OAS4220: Drivers interface (>25 pieces)

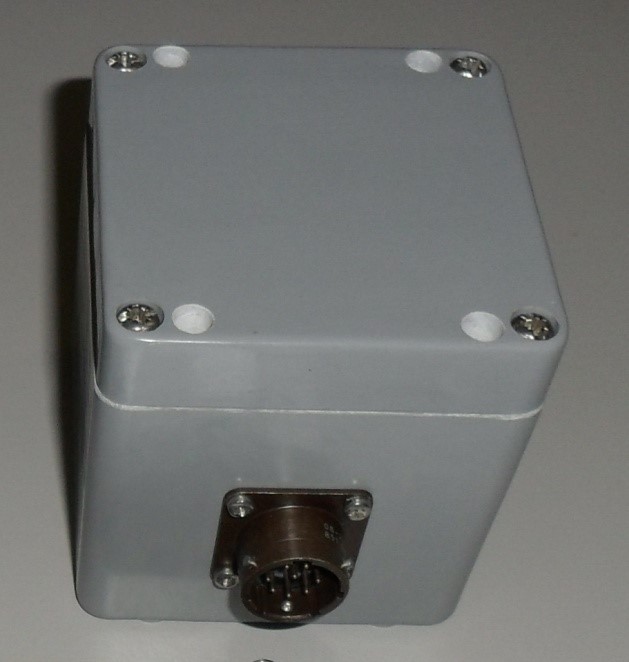

OAS4120: Transmission antennas that are placed below the vehicle (>1800 pieces)

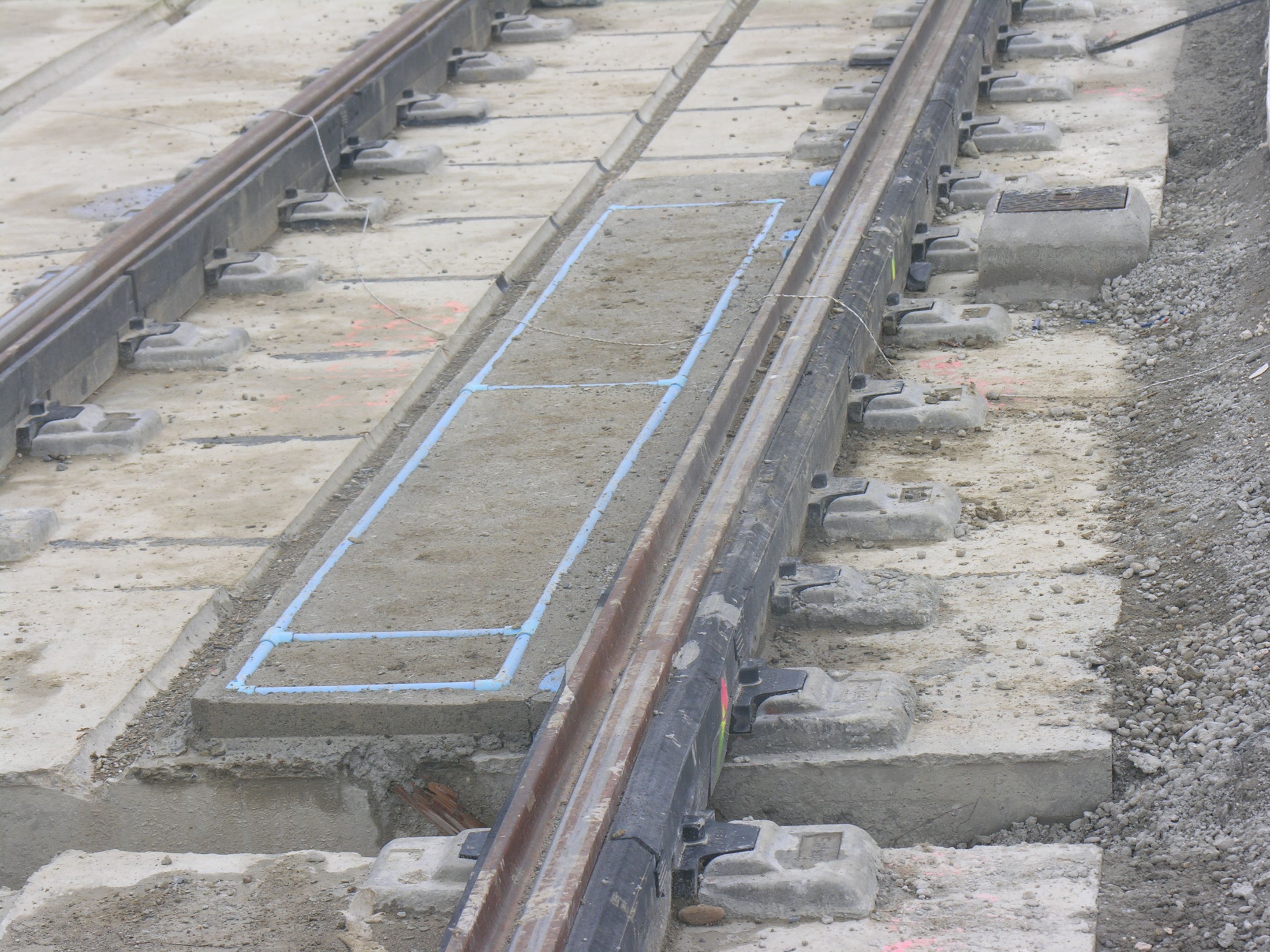

Selective prefab ground loops that are placed between the railwaytracks or in the road surface (>30 pieces)

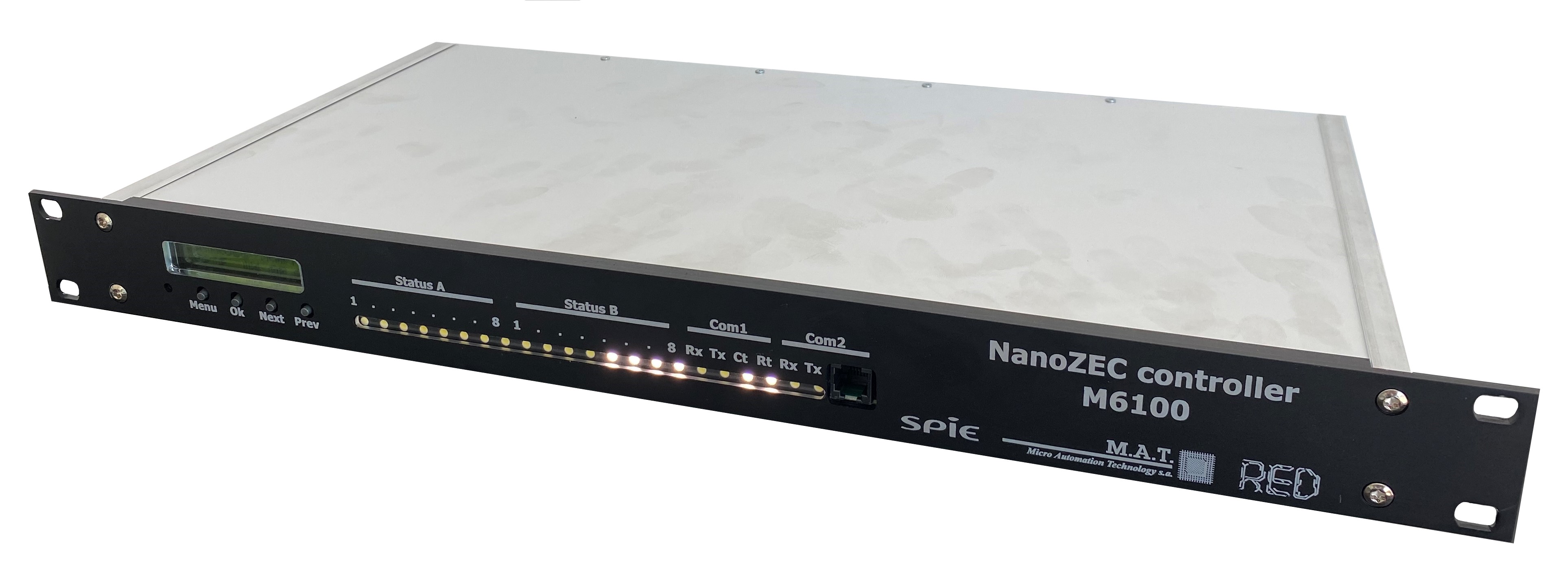

The M6100 ("NanoZEC") is a (up to 32 lane) vehicle counting system in a 19-inch 1U casing. It interfaces with SIAT detection cards and can calculate the number of vehicles, speeds, lengths,... for every lane indivually. The system has several RS232 ports and ethernet connectivity for configuration as well as for reading out the calculated results.

Regardless of its current application, the device is designed as a universal 19-inch 1U embedded computer with a basic user interfae that can be configured as desired and can communicate with up to 6 channels at the same time trough various interfaces (ethernet, RS232, RS485, ...) and protocols. A built-in battery management system allows (temporary) operation on an externally connectable battery.

 * SPIE Belgium is the only and official distributor of this product

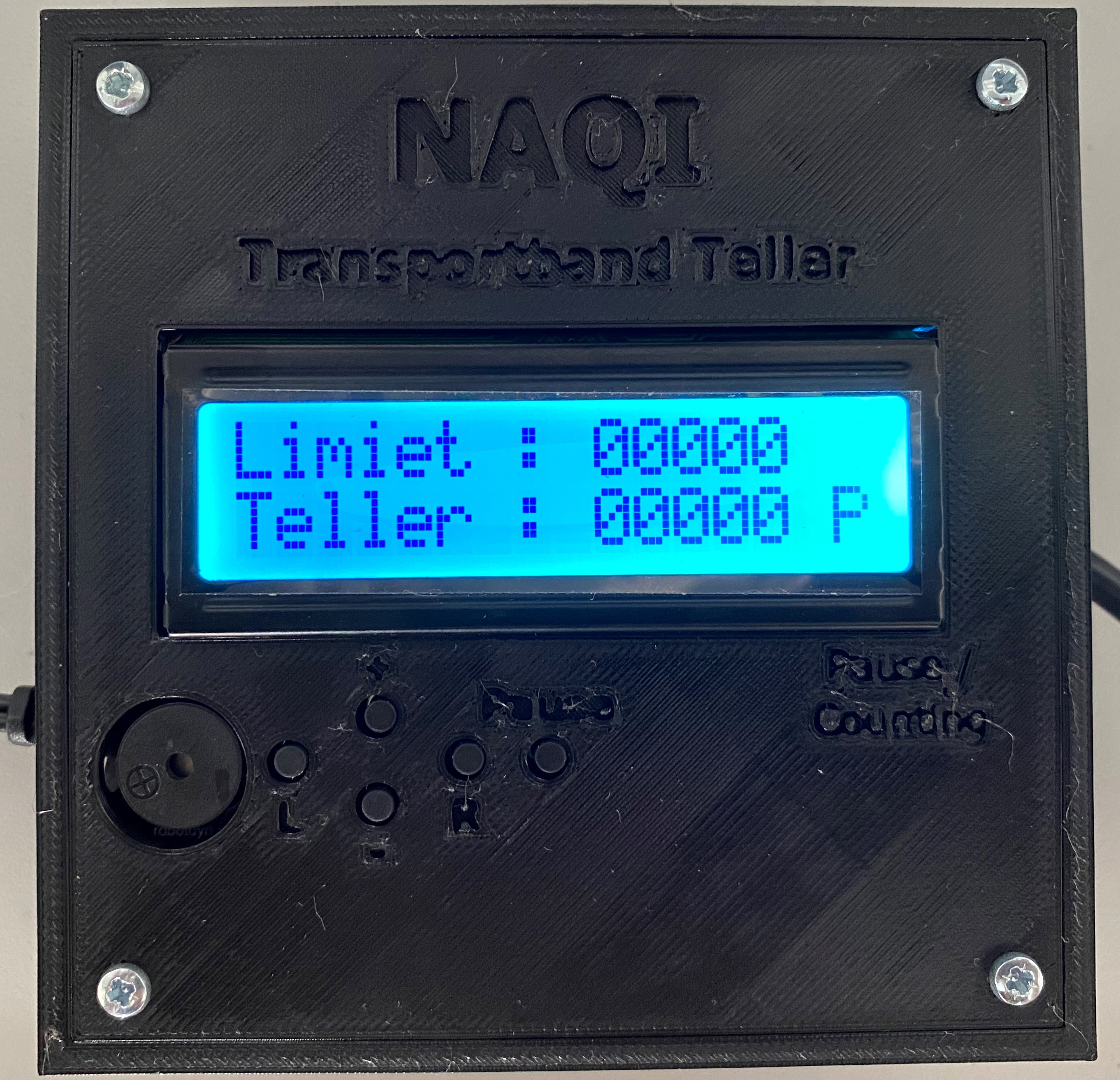

Conveyor belt counter with auditory and colored feedback every multiple of an adjustable value. Mounted in a 3D-printed housing. This product was designed on-demand of the client.

AISY (Audio Identification SYstem) is a selective vehicle detection system, aimed for buses and tramways. AISY offers a complete solution for cross light priority for public transport vehicles and railroad switch control for tramways.

OAS4930: Decoder of the by vehicle sended datasignals

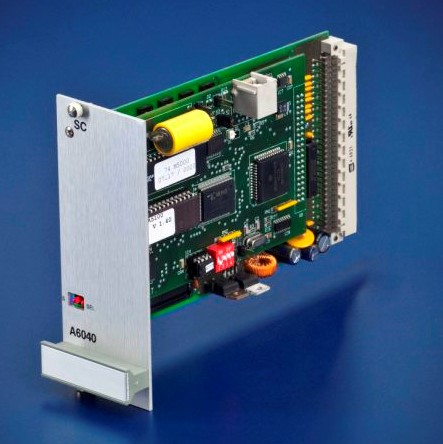

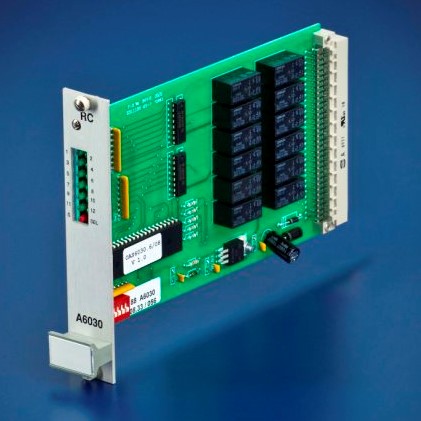

OAS6030 & OAS6040: Extension cards and relais cards for decoding and further threatment of the datasignals
>200 pieces

Glassiled Motion is a dynamic glass product by AGC. It consists of architectural glasses with LEDs mounted in a fixed array. The LEDs are individually controllable & dimmable. Doing so, animations can be played on the glass. When using RGB LEDs and when large sections of a building are equipped with Glassiled Motion, the building’s facade becomes a video screen while preserving transparency from within the building.

The lightning control systems aims at providing a flexible system that can be used both for large video walls or smaller projects. Its consists of 3 (hierachical) building blocks that can be combined into controller systems that conveniently control either a single glass, a group of glasses or a whole wall of glasses.

This project was a cooperation with our partners Brandneww and ThomasVDD. RED (as subcontractant of BrandNeww) was responsible for the development of the last building block (i.e. the block closest to the glass) that takes data and configuration settings from other building blocks and sends the data to 2 Glassiled Motion glasses according to these settings.

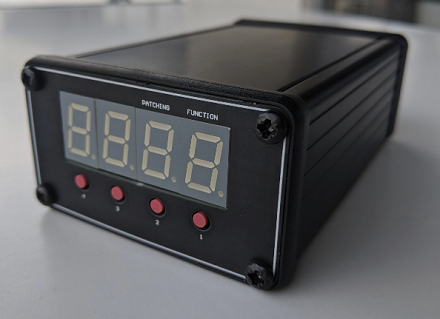

To test Glassiled Motion glasses during production, the current through the different LEDs needs to be tested to verify whether the current is within tolerance and whether there are no faulty LEDs. The developed system is able to turn ON and OFF the glass power supply and individual LEDs and monitor their current with a multimeter in an automated way. The system will log all currents and produce a report with all currents, faults and statistics.
An additional 1-to-12 glass splitter was developped as well.

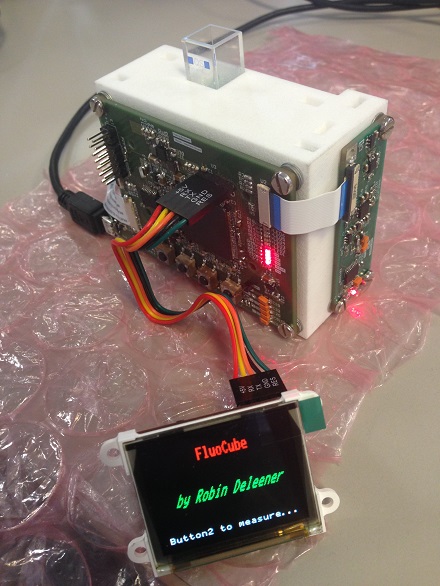

The objective was to design and realize a fluorescence lifetime meter. The device needed to be as compact as possible and USB-powered. The design includes hardware design, PCB design and software design. The result was a functional protoype, measuring fluorescence lifetimes. This project was awarded the IMEC-price for best master thesis of the faculty engineering of the year 2014.

This technology was later on studied in more detail and the device improved further during a PhD.
